For Wood (LAQIV - III Series)
For Wood (LAQIV - III Series)

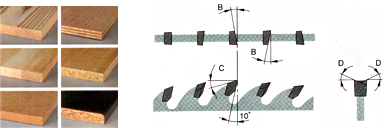

LAQIV Series ( ABA-10 )
| Application |
|---|
Natural wood, Bonded wood, Plywood, Particle, board
| Size | Angles | |||||||
|---|---|---|---|---|---|---|---|---|
| Diameter | Kerf | Plate Thickness | Center Hole | Teeth | A | B | C | D |
| 305 | 3.0 | 2.2 | 25.4 | 100 | 10 | 15 | 15 | 10 |

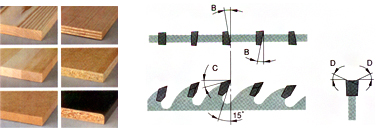

LAQIV Series ( ABA-15 )
| Application |
|---|
Natural wood, Bonded wood, Plywood, Particle, board
| Size | Angles | |||||||
|---|---|---|---|---|---|---|---|---|
| Diameter | Kerf | Plate Thickness | Center Hole | Teeth | A | B | C | D |
| 305 | 3.0 | 2.2 | 25.4 | 100 | 15 | 15 | 15 | 10 |
| 355 | 3.0 | 2.2 | 25.4 | 100 | 15 | 15 | 15 | 10 |
| 355 | 3.0 | 2.2 | 25.4 | 100 | 15 | 15 | 15 | 10 |
LAQIII Series ( ABA-15 )
| Application |
|---|
Natural wood, Bonded wood, Plywood, Particle, board
| Size | Angles | |||||||
|---|---|---|---|---|---|---|---|---|
| Diameter | Kerf | Plate Thickness | Center Hole | Teeth | A | B | C | D |
| 305 | 3.0 | 2.2 | 25.4 | 100 | 15 | 15 | 15 | 10 |
| 355 | 3.0 | 2.2 | 25.4 | 100 | 15 | 15 | 15 | 10 |
| 355 | 3.0 | 2.2 | 25.4 | 120 | 15 | 15 | 15 | 10 |

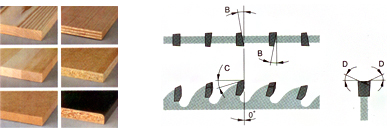

LAQIII Series ( AB-0 )
| Application |
|---|
Natural wood, Bonded wood, Plywood, Particle, board
| Size | Angles | |||||||
|---|---|---|---|---|---|---|---|---|
| Diameter | Kerf | Plate Thickness | Center Hole | Teeth | A | B | C | D |
| 305 | 3.0 | 2.2 | 25.4 | 100 | 0 | 10 | 15 | 10 |
| 320 | 3.0 | 2.2 | 25.4 | 100 | 0 | 10 | 15 | 10 |
| 330 | 3.0 | 2.2 | 25.4 | 100 | 0 | 10 | 15 | 10 |
| 355 | 3.0 | 2.2 | 25.4 | 100 | 0 | 10 | 15 | 10 |
LAQIII Series ( AB-10 )
| Application |
|---|
Natural wood, Bonded wood, Plywood, Particle, board
| Size | Angles | |||||||
|---|---|---|---|---|---|---|---|---|
| Diameter | Kerf | Plate Thickness | Center Hole | Teeth | A | B | C | D |
| 305 | 3.0 | 2.2 | 25.4 | 100 | 10 | 10 | 15 | 10 |
LAQIII Series ( AB-15 )
| Application |
|---|
Natural wood, Bonded wood, Plywood, Particle, board
| Size | Angles | |||||||
|---|---|---|---|---|---|---|---|---|
| Diameter | Kerf | Plate Thickness | Center Hole | Teeth | A | B | C | D |
| 305 | 3.0 | 2.2 | 25.4 | 100 | 15 | 10 | 15 | 10 |
| 320 | 3.0 | 2.2 | 25.4 | 100 | 15 | 10 | 15 | 10 |
| 330 | 3.0 | 2.2 | 25.4 | 120 | 15 | 10 | 15 | 10 |
| 330 | 3.0 | 2.2 | 25.4 | 120 | 15 | 10 | 15 | 10 |
