For Wood NEW LAQ Series
For Wood NEW LAQ Series
NEW LAQ Series ( AB - 0 )
| Application |
|---|
Natural wood, Bonded wood, Plywood, Particle, board
| Size | Angles | |||||||
|---|---|---|---|---|---|---|---|---|
| Diameter | Kerf | Plate Thickness | Center Hole | Teeth | A | B | C | D |
| 305 | 3.0 | 2.2 | 25.4 | 100 | 0 | 15 | 15 | 10 |
| 355 | 3.0 | 2.2 | 25.4 | 100 | 0 | 15 | 15 | 10 |
NEW LAQ Series ( AB - 15 )
| Application |
|---|
Natural wood, Bonded wood, Plywood, Particle, board
| Size | Angles | |||||||
|---|---|---|---|---|---|---|---|---|
| Diameter | Kerf | Plate Thickness | Center Hole | Teeth | A | B | C | D |
| 255 | 3.0 | 2.0 | 25.4 | 100 | 15 | 15 | 15 | 10 |
| 305 | 3.0 | 2.2 | 25.4 | 100 | 15 | 15 | 15 | 10 |
| 320 | 3.0 | 2.2 | 25.4 | 100 | 15 | 15 | 15 | 10 |
| 330 | 3.0 | 2.2 | 25.4 | 100 | 15 | 15 | 15 | 10 |
| 355 | 3.0 | 2.2 | 25.4 | 100 | 15 | 15 | 15 | 10 |
| 355 | 3.0 | 2.2 | 25.4 | 120 | 15 | 15 | 15 | 10 |
| 405 | 3.2 | 2.4 | 25.4 | 100 | 15 | 15 | 15 | 10 |
| 405 | 3.2 | 2.4 | 25.4 | 120 | 15 | 15 | 15 | 10 |
| 455 | 3.2 | 2.4 | 25.4 | 100 | 15 | 15 | 15 | 10 |
| 455 | 3.2 | 2.4 | 25.4 | 120 | 15 | 15 | 15 | 10 |

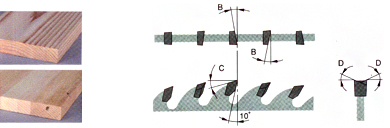

C - 10
| Application |
|---|
Natural wood, Bonded wood fpr Cross-cutting
| Size | Angles | |||||||
|---|---|---|---|---|---|---|---|---|
| Diameter | Kerf | Plate Thickness | Center Hole | Teeth | A | B | C | D |
| 405 | 3.0 | 2.0 | 25.4 | 80 | 10 | 10 | 15 | 10 |
| 405 | 3.0 | 2.0 | 25.4 | 100 | 10 | 10 | 15 | 10 |
| 455 | 3.2 | 2.4 | 25.4 | 80 | 10 | 10 | 15 | 10 |
| 455 | 3.2 | 2.4 | 25.4 | 100 | 10 | 10 | 12 | 10 |
| 510 | 3.4 | 2.6 | 25.4 | 80 | 10 | 10 | 15 | 10 |
| 510 | 3.4 | 2.6 | 25.4 | 100 | 10 | 10 | 12 | 10 |
| 560 | 3.6 | 2.6 | 25.4 | 100 | 10 | 10 | 15 | 10 |
| 610 | 3.6 | 2.6 | 25.4 | 80 | 10 | 10 | 15 | 10 |
| 610 | 3.6 | 2.6 | 25.4 | 100 | 10 | 10 | 15 | 10 |

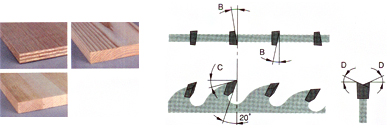

CB - 20
| Application |
|---|
Natural wood, Bonded wood, Plywood for Ripping
| Size | Angles | |||||||
|---|---|---|---|---|---|---|---|---|
| Diameter | Kerf | Plate Thickness | Center Hole | Teeth | A | B | C | D |
| 255 | 2.0 | 1.4 | 25.4 | 40 | 20 | 5 | 15 | 10 |
| 255 | 2.2 | 1.6 | 25.4 | 40 | 20 | 5 | 15 | 10 |
| 255 | 3.0 | 2.0 | 25.4 | 40 | 20 | 5 | 12 | 10 |
| 305 | 2.2 | 1.6 | 25.4 | 40 | 20 | 5 | 15 | 10 |
| 305 | 2.8 | 2.0 | 25.4 | 40 | 20 | 5 | 12 | 10 |
| 305 | 3.0 | 2.0 | 25.4 | 40 | 20 | 5 | 12 | 10 |

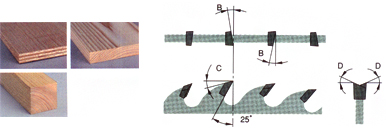

CB - 25
| Application |
|---|
Natural wood, Bonded wood, Plywood for Ripping
| Size | Angles | |||||||
|---|---|---|---|---|---|---|---|---|
| Diameter | Kerf | Plate Thickness | Center Hole | Teeth | A | B | C | D |
| 305 | 3.0 | 2.0 | 25.4 | 50 | 25 | 5 | 15 | 10 |
| 355 | 3.0 | 2.0 | 25.4 | 40 | 25 | 5 | 12 | 10 |
