Grinding Wheel Adapters
Grinding Wheel Adapters from HAIMER
To achieve superior grinding results and to make your grinding process more efficient, several factors play a decisive role: Besides a precise spindle interface and the use of fine-balanced grinding wheels, the right grinding wheel adapter is of great importance.
HAIMER grinding wheel adapters are manufactured just like all HAIMER tool holders - according to the highest quality standards and are characterized by the following features:
- Fine machined functional surfaces guarantee maximum precision at the spindle interface
- More accurate than DIN
- Body with balancing threads: Correction of the unbalance via balancing screws, even when using spacers without balancing threads
- Balanced
HAIMER offers grinding wheel adapters and accessories are available for the following tool grinding machines:
ISOG grinding wheel adapter HSK-F50
Grinding wheel adapter HSK-F50 (with access hole) Ø 20 mm suitable for ISOG-grinding machines for spacers Ø 40 mm
Delivery: Spacer pack, clamping nut, sealing pin, lock plate
Technical data subject to change without prior notice
Certificate of Quality
- All function surfaces finely processed
- More accurate than DIN
- Basic body with balancing thread
- Weighted

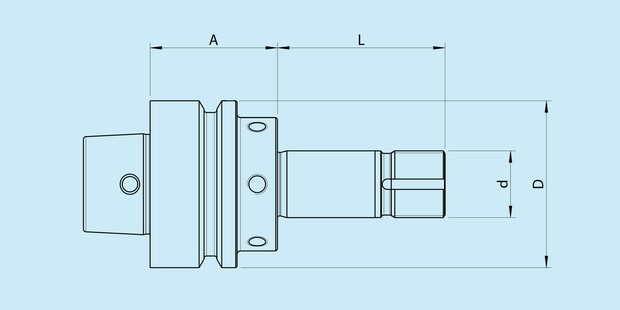

Technical drawing
| Version | L [mm] | Clamping Ø d [mm] | Length A [mm] | Ø D [mm] | Additional information |
|---|---|---|---|---|---|
| 50 | 50 | 20 | 38 | 40 | Incl. spacers+ 1 sealing pin (2x L=12, 1x L=3 [mm]) |
| 60 | 60 | 20 | 58 | 40 | Incl. spacers+ 1 sealing pin (2x L=12, 1x L=6, 2x L=3 [mm]) |
| 90 | 90 | 20 | 58 | 40 | Incl. spacers+ 1 sealing pin (3x L=12, 2x L=6, 2x L=3 [mm]) |
