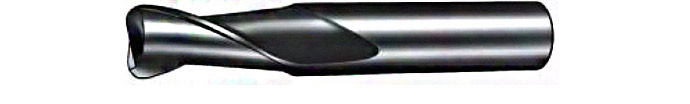

Radius Cutters
Radius Cutters
RH
CODE N° |
Da8 |
D2h6 |
d |
L |
L1 |
L2 |
L3 |
r |
Z |
| RH0380 | 3 | 6 | 2,8 | 3,5 | 12 | 40 | 80 | 0,5 | 2 |
| RH0480 | 4 | 6 | 3,8 | 4 | 15 | 40 | 80 | 1,0 | 2 |
| RH0680 | 6 | 6 | 5,6 | 6 | 18 | 40 | 80 | 2,0 | 2 |
| RH06100 | 6 | 8 | 5,6 | 6 | 40 | 60 | 100 | 2,0 | 2 |
| RH08100 | 8 | 8 | 7,6 | 7 | 50 | 60 | 100 | 2,0 | 2 |
| RH08120 | 8 | 10 | 7,6 | 7 | 30 | 75 | 120 | 2,0 | 2 |
| RH10120 | 10 | 10 | 9,6 | 8 | 60 | 75 | 120 | 3,0 | 2 |
| RH10122 | 10 | 12 | 9,6 | 8 | 30 | 70 | 120 | 3,0 | 2 |
| RH12120 | 12 | 12 | 11,5 | 10 | 70 | 70 | 120 | 4,0 | 2 |
| RH12150 | 12 | 16 | 11,5 | 10 | 35 | 100 | 150 | 4,0 | 2 |
HMUR
CODE N° |
Da8 |
D2h6 |
L |
L1 |
L2 |
r |
Z |
| HMUR406005 | 6 | 6 | 15 | 60 | 0,5 | 4 | |
| HMUR406010 | 6 | 6 | 15 | 60 | 1,0 | 4 | |
| HMUR408005 | 8 | 8 | 20 | 75 | 0,5 | 4 | |
| HMUR408010 | 8 | 8 | 20 | 75 | 1,0 | 4 | |
| HMUR401005 | 10 | 10 | 25 | 80 | 0,5 | 4 | |
| HMUR401010 | 10 | 10 | 25 | 80 | 1,0 | 4 | |
| HMUR401210 | 12 | 12 | 30 | 100 | 1,0 | 4 | |
| HMUR401215 | 12 | 12 | 30 | 100 | 1,5 | 4 | |
| HMUR401610 | 16 | 16 | 40 | 110 | 1,0 | 4 | |
| HMUR401615 | 16 | 16 | 40 | 110 | 1,5 | 4 |
